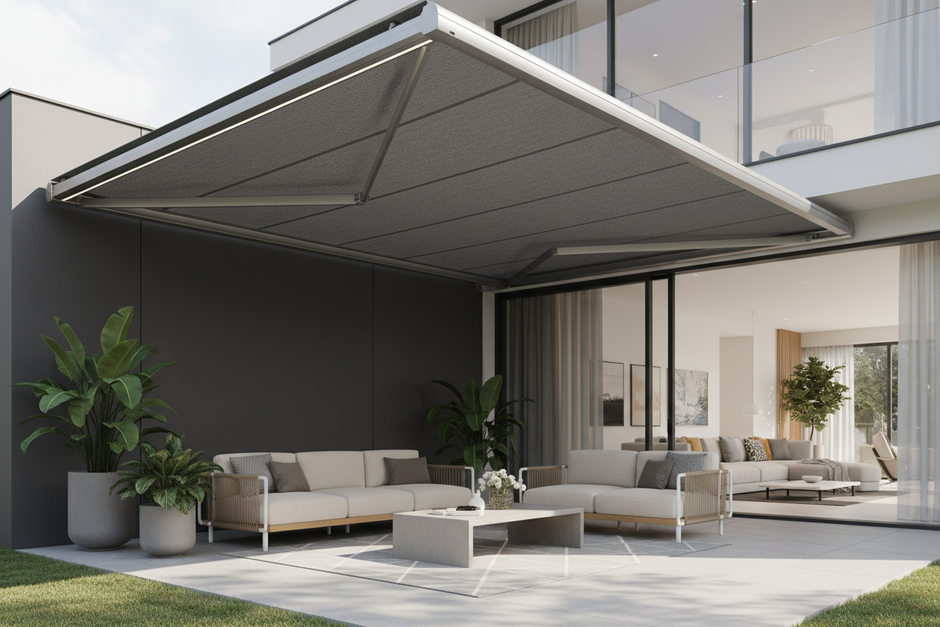

Heavy Duty Full Cassette-type Electric Retractable Awning - Motorized Patio Shade with Remote Control

Transform Your Outdoor Living Space

Experience the perfect blend of comfort, style, and smart technology with our premium Electric Retractable Awning. Designed for modern homes, this motorized shading solution provides instant protection from sun and light rain while enhancing your outdoor aesthetics.

🌟 Key Features

• One-Touch Motorized Control - Effortlessly extend or retract your awning with a single button press. No manual cranking required.
• Smart Sensor Technology - Automatic wind and sun sensors protect your awning and optimize comfort throughout the day.
• Premium Waterproof Fabric - High-quality acrylic fabric with waterproof coating ensures long-lasting durability and weather resistance.
• Whisper-Quiet Motor - German-engineered motor operates smoothly and silently for a premium experience.
• UV Protection (UPF 50+) - Blocks up to 98% of harmful UV rays, protecting your family and furniture.

⚡ Electric vs Manual Awning - Why Upgrade?

See the clear advantages of choosing an electric retractable awning over traditional manual models:

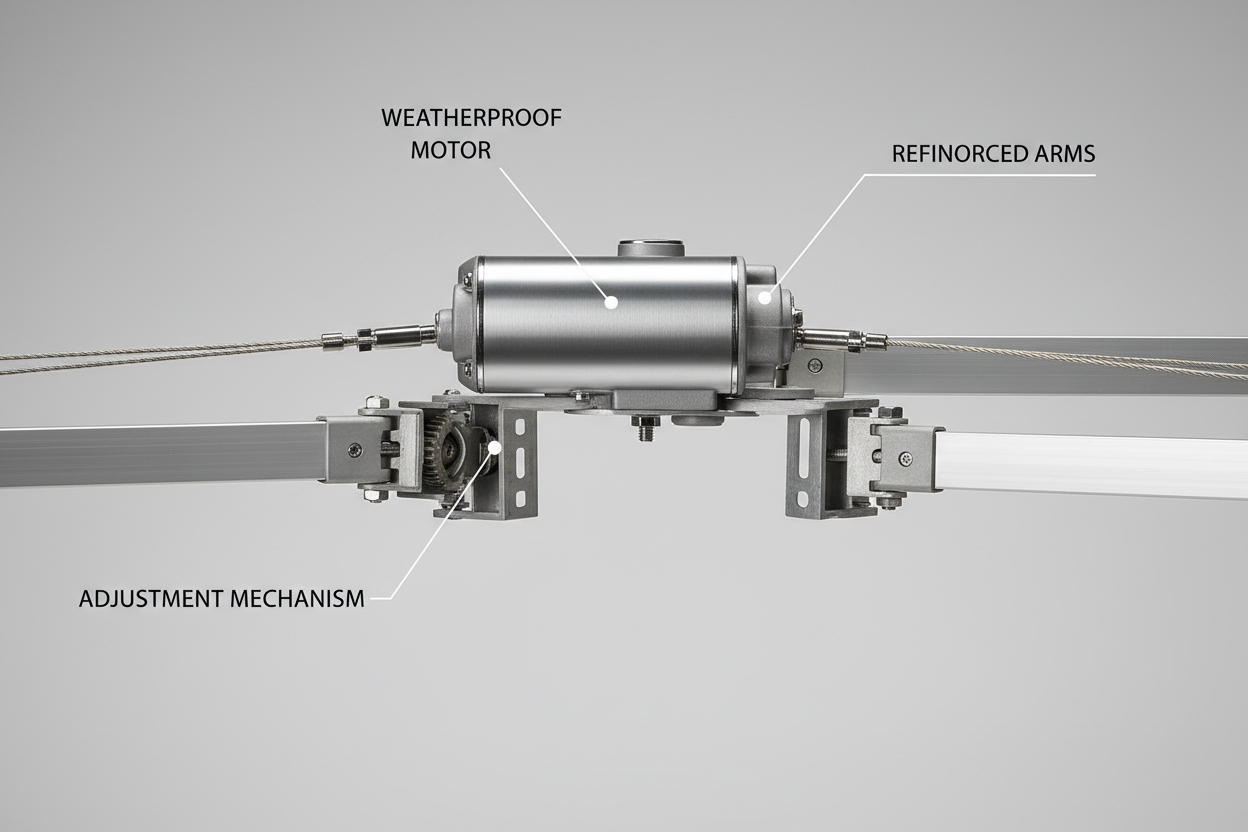

🔧 Superior Engineering

Our electric retractable awning features premium components designed for reliability and longevity:

• Weatherproof Motor Housing - Sealed aluminum casing protects against moisture and dust
• Reinforced Articulated Arms - Heavy-duty aluminum arms with stainless steel tension cables
• Precision Mounting System - Adjustable brackets ensure perfect installation on any surface
• Emergency Manual Override - Retract manually in case of power outage

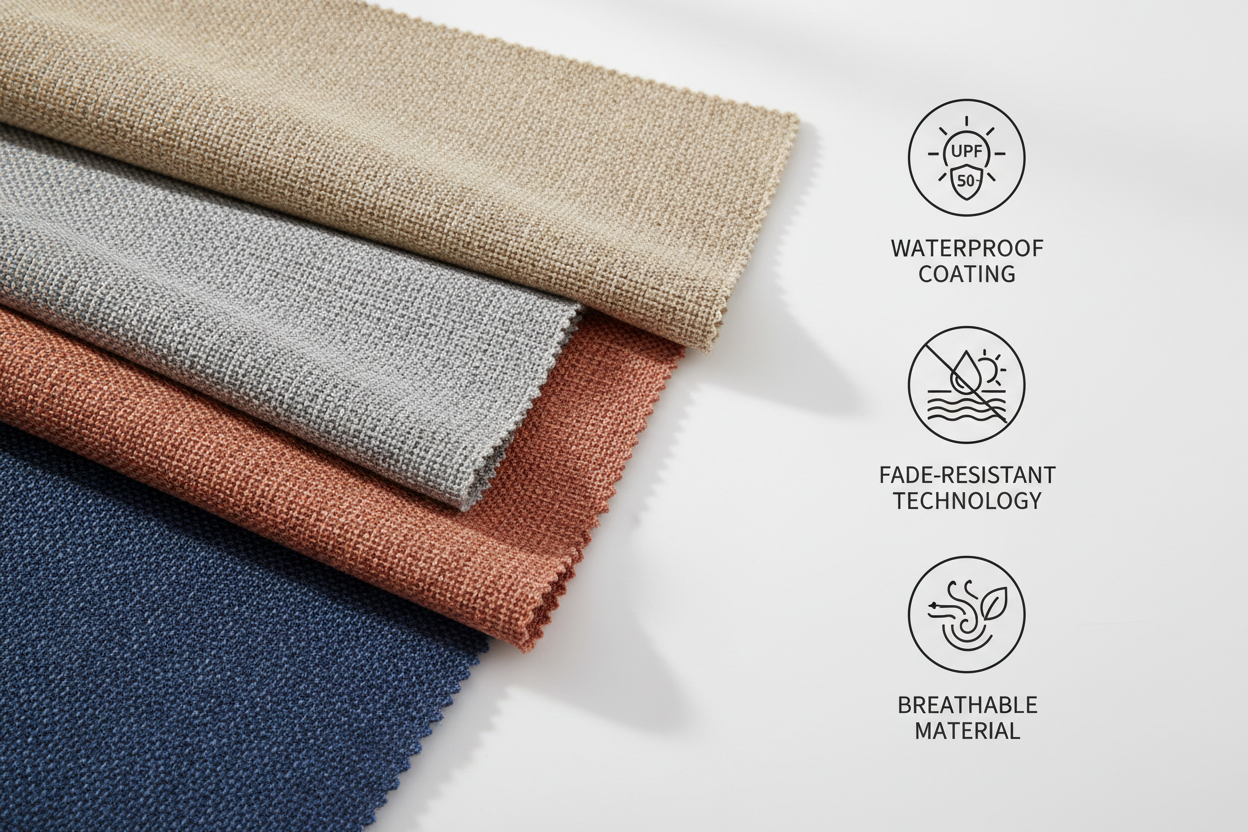

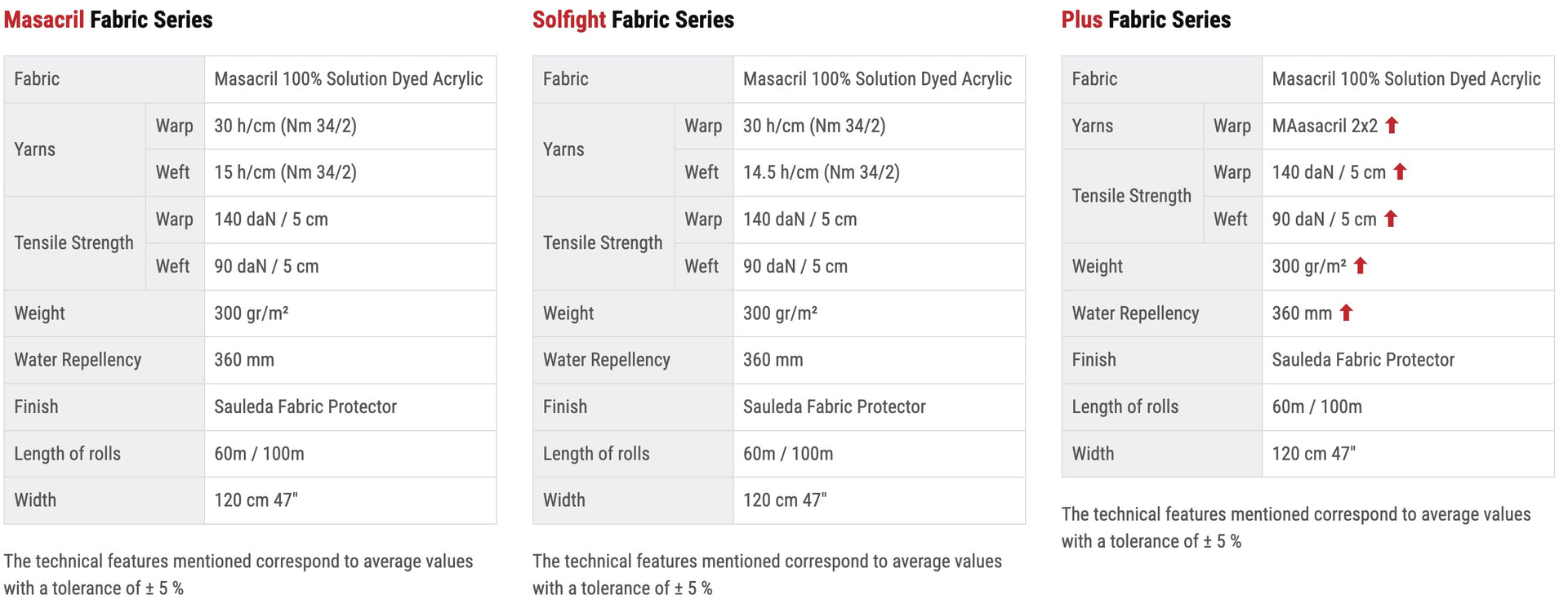

🎨 Fabric Options & Protection

Choose from a wide range of premium fabrics to match your home's aesthetic:

• Solution-Dyed Acrylic - Fade-resistant colors that last for years
• Multiple Color Options - Beige, Grey, Terracotta, Navy, and custom colors available
• Waterproof Coating - Protects against light rain and moisture
• Breathable Material - Allows air circulation while blocking heat
• Easy to Clean - Simple maintenance with mild soap and water

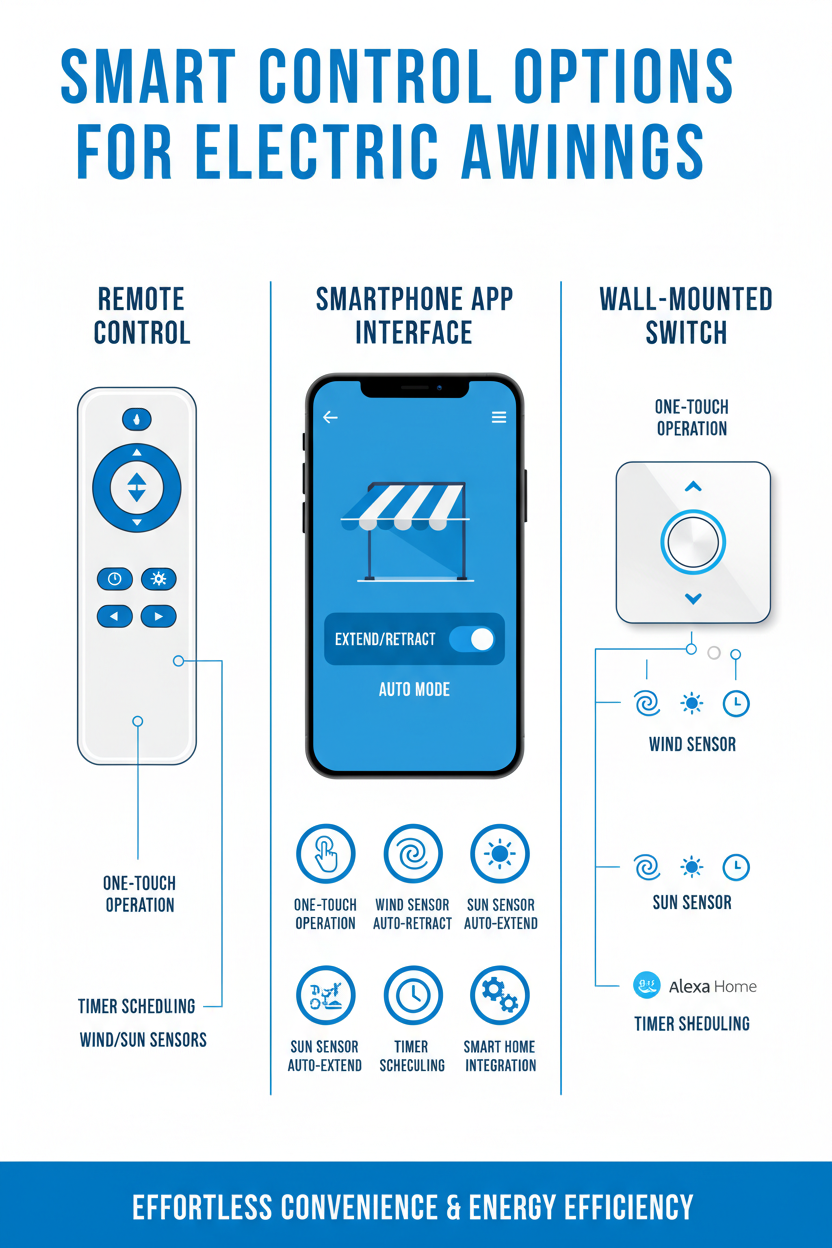

🎮 Control Options

Control your awning conveniently with multiple options:

• Wireless Remote Control - Operate from up to 30 meters away with handheld remote
• Wall-Mounted Switch - Convenient indoor control panel for easy access
• Wind Sensor Auto-Retract - Automatically protects awning in high winds (>40 km/h)
• Sun Sensor Auto-Extend - Automatically provides shade when sunlight reaches set threshold

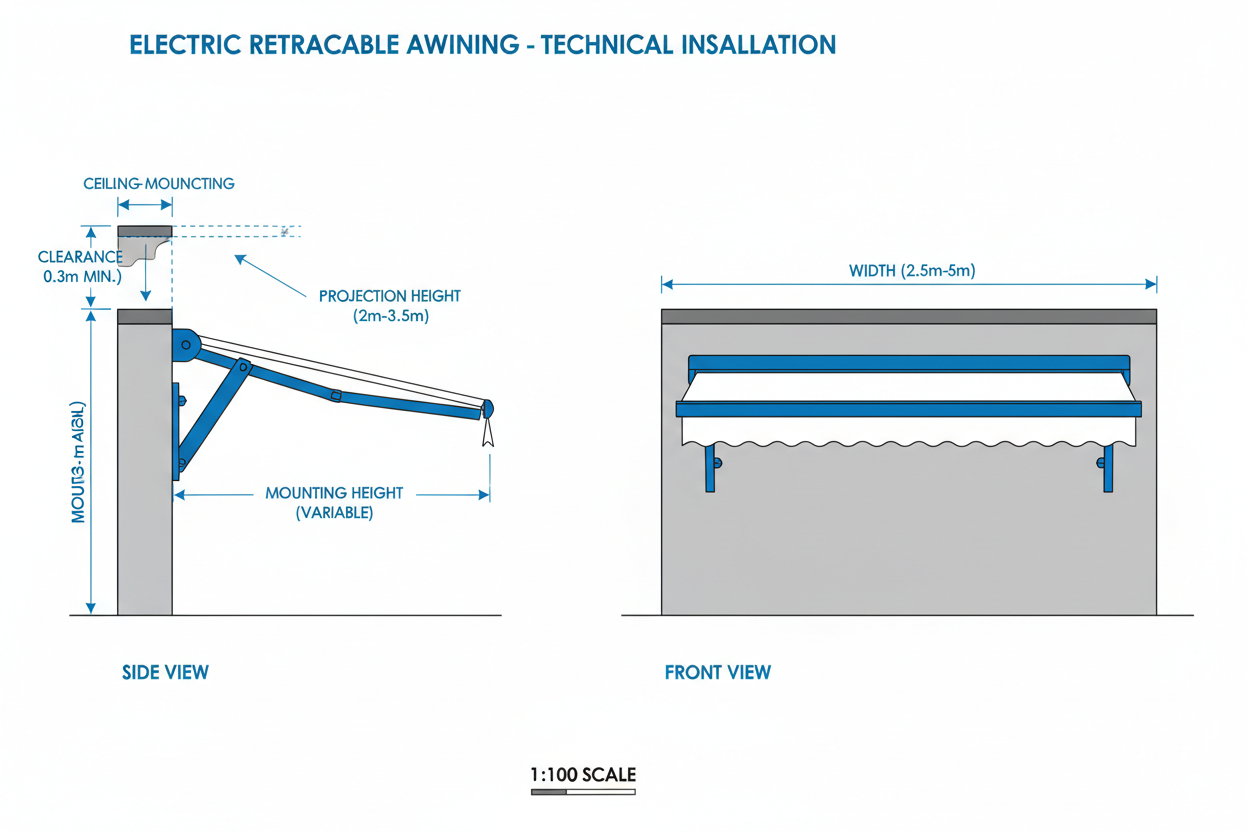

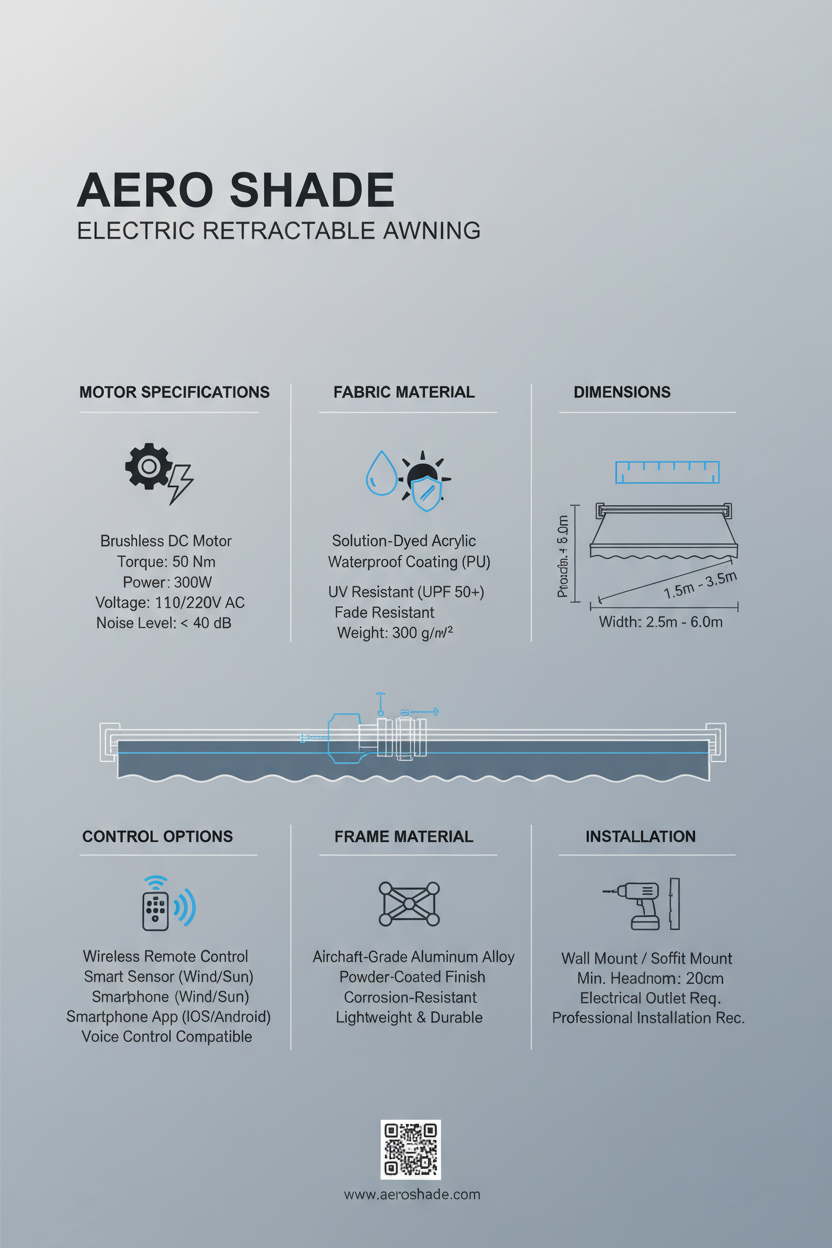

📐 Dimensions & Specifications

Available Sizes:

• Width Options: 2.5m, 3m, 3.5m, 4m, 4.5m, 5m
• Projection Options: 2m, 2.5m, 3m, 3.5m
• Mounting Height: 2.5m - 4m recommended
• Pitch Angle: Adjustable 5° - 35°

Technical Specifications:

• Motor: 230V AC, 50Hz, Tubular motor with thermal protection
• Power Consumption: 180W (operating), <1W (standby)
• Frame Material: Powder-coated aluminum alloy
• Wind Resistance: Up to 40 km/h (Beaufort Scale 6)
• Operating Temperature: -20°C to +60°C
• Warranty: 5 years motor, 3 years fabric, 2 years frame

🛠️ Installation Guide

Professional Installation Recommended

While DIY installation is possible for experienced homeowners, we strongly recommend professional installation to ensure optimal performance, safety, and warranty coverage. Installation typically takes 2-4 hours depending on mounting surface and complexity.

Installation Overview (6 Steps):

1. Measure & Mark - Use measuring tape and level to mark precise mounting positions on wall or ceiling
2. Install Brackets - Drill pilot holes and securely attach mounting brackets with appropriate hardware for your wall type
3. Attach Awning Frame - Carefully lift and secure the awning frame to the installed brackets (2-person job recommended)
4. Electrical Connection - Connect motor wiring to power source following local electrical codes (licensed electrician recommended)
5. Install Controls - Set up remote control receiver, wall switch, and test all control functions
6. Final Adjustments - Adjust pitch angle, tension, and sensor settings for optimal performance

Tools Required:

• Power drill with masonry/wood bits
• Spirit level (minimum 1m length)
• Measuring tape
• Screwdriver set
• Adjustable wrench
• Ladder or scaffolding
• Electrical testing equipment (for licensed electrician)

Important Safety Notes:

• ⚠️ Electrical work must be performed by a licensed electrician
• ⚠️ Two-person installation required - awning is heavy (approx. 180kg)
• ⚠️ Ensure mounting surface can support minimum 300kg load
• ⚠️ Check for hidden electrical wiring or plumbing before drilling
• ⚠️ Follow all local building codes and obtain necessary permits
• ⚠️ Use appropriate safety equipment including safety glasses and gloves

Professional Installation Service Available:

Contact us for professional installation quotes in your area. Our certified installers ensure proper setup, electrical connection, and full warranty activation.

🚢 Shipping Information

Sea Freight Delivery: 14-21 business days

All orders are carefully packaged and shipped via sea freight. Delivery time is approximately 14 to 21 business days from the date of dispatch. You will receive tracking information once your order has been shipped.

✅ Perfect For

• Balconies and terraces
• Patios and decks
• Courtyards and gardens
• Outdoor dining areas
• Pool and spa areas

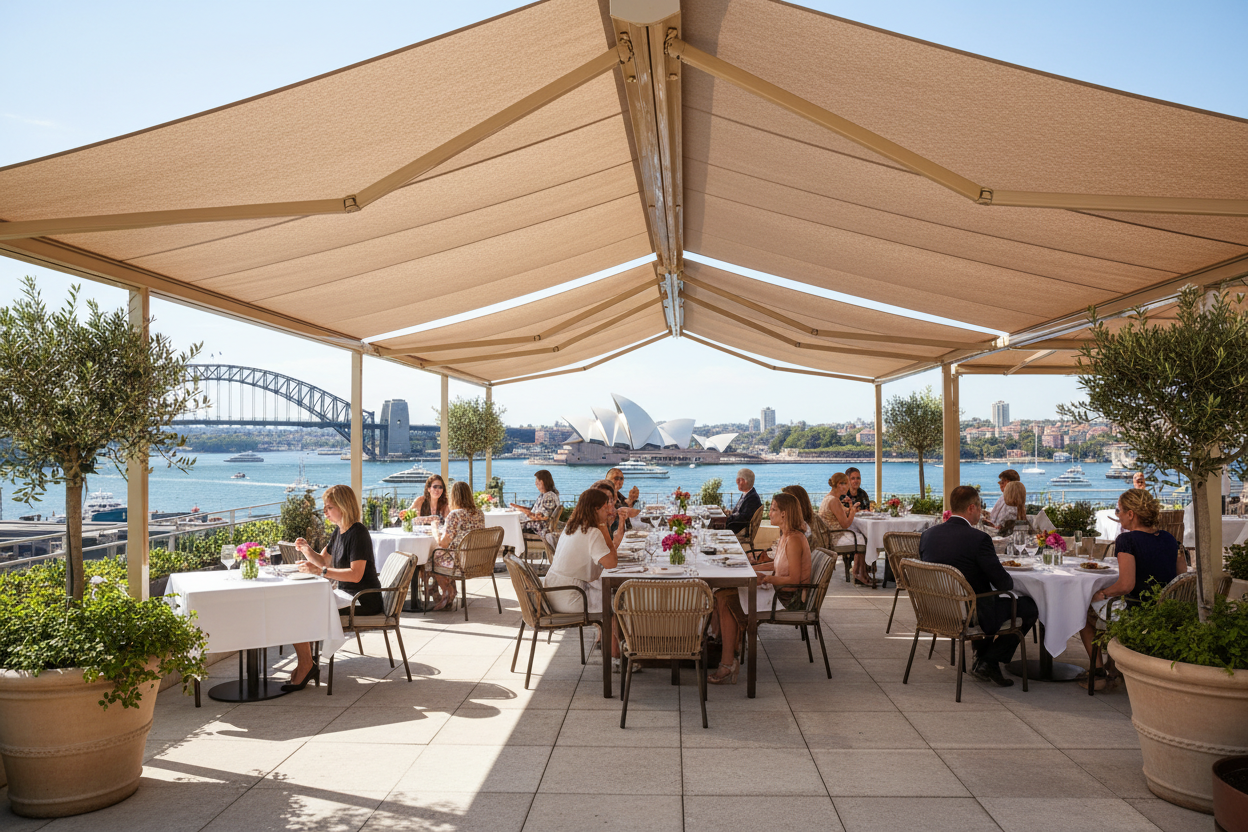

• Commercial outdoor spaces (cafes, restaurants)

📦 What's Included

• Electric retractable awning with motor
• Wireless remote control (batteries included)
• Wall mounting brackets and hardware
• Installation manual and template
• 5-year manufacturer warranty

💡 Why Choose Our Electric Retractable Awning?

• Premium Quality: German-engineered components built to last
• Smart Sensors: Automated wind and sun protection for worry-free operation
• Energy Savings: Reduce cooling costs by up to 25% by blocking direct sunlight
• Increase Home Value: Enhance curb appeal and outdoor living space
• Versatile Design: Complements any architectural style
• Comprehensive Warranty: Peace of mind with industry-leading coverage

Transform your outdoor space into a comfortable, stylish retreat with the touch of a button. Order your Electric Retractable Awning today and enjoy outdoor living year-round!
