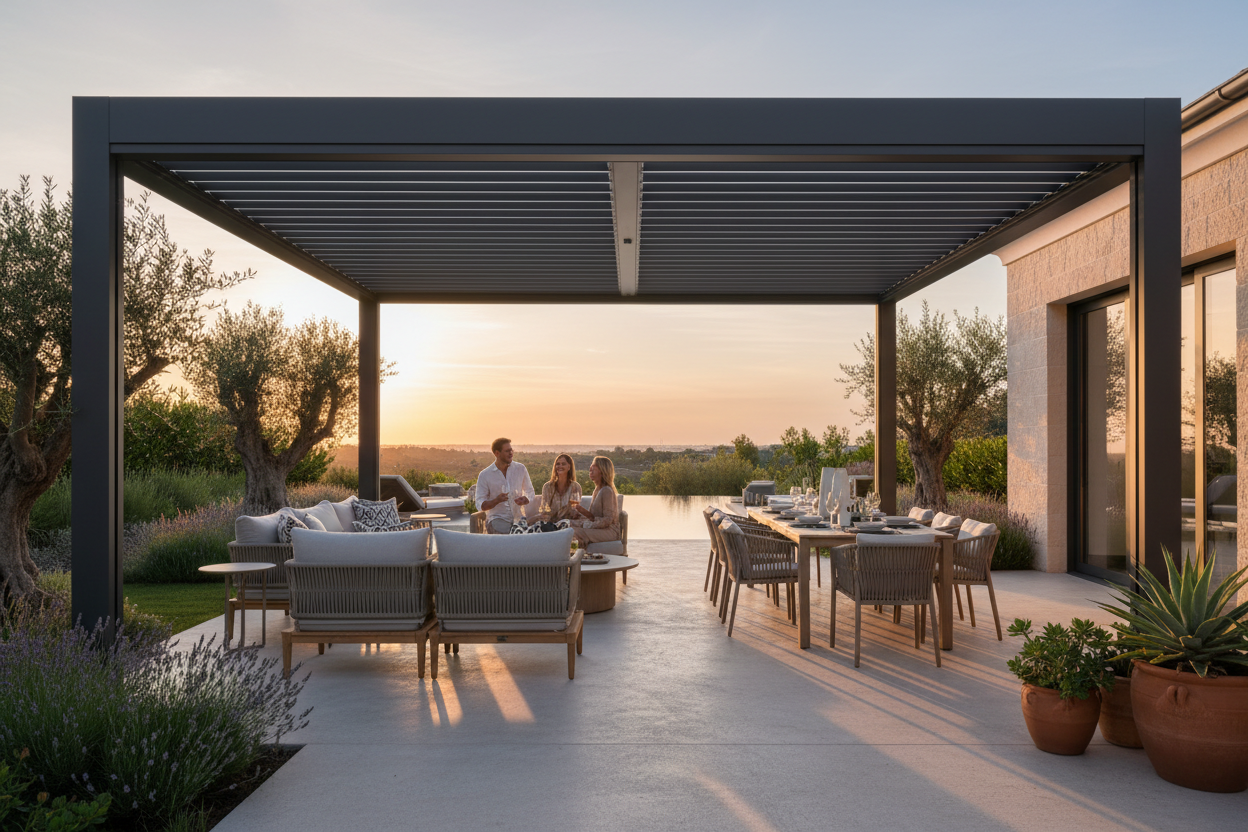

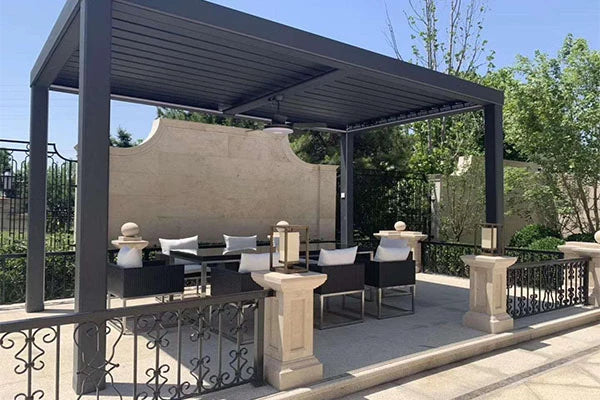

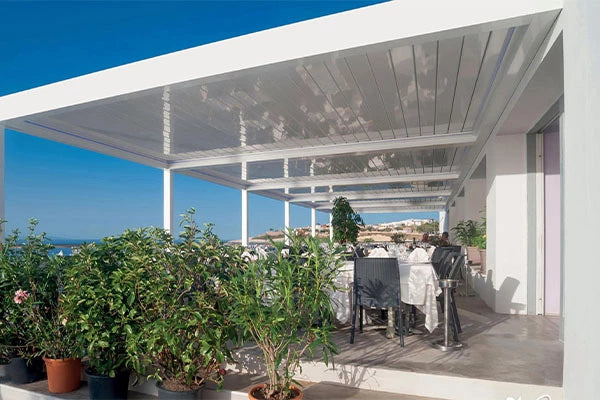

Electric Pergola - Motorized Louvered Roof System

Elevate Your Outdoor Living with Intelligent Climate Control

Transform your backyard into a luxurious year-round outdoor retreat with our premium Electric Pergola featuring a state-of-the-art motorized louvered roof system. This architectural masterpiece combines elegant design with cutting-edge technology to give you complete control over sunlight, shade, ventilation, and weather protection at the touch of a button.

🌟 Key Features

• Motorized Rotating Louvers - Precision-engineered aluminum louvers rotate from 0° to 135° for infinite shade and light control
• Complete Weather Protection - Fully waterproof when closed, providing 100% rain protection for your outdoor space
• Smart Sensor Technology - Automatic rain and wind sensors protect your pergola and ensure optimal comfort
• Whisper-Quiet Operation - German-engineered motors operate smoothly and silently for a premium experience

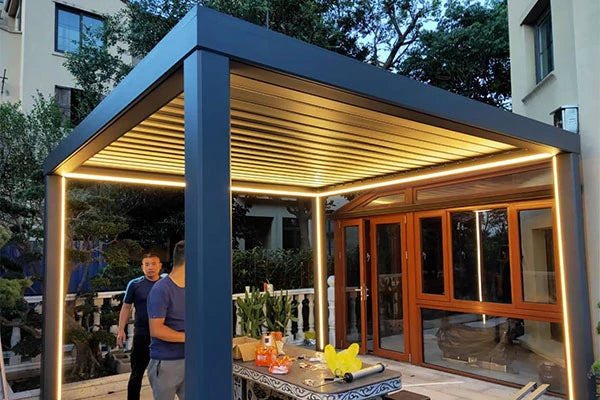

• Integrated LED Lighting - Built-in LED strips create stunning ambiance for evening entertainment
• Premium Aluminum Construction - Powder-coated aluminum frame resists rust, corrosion, and fading for decades
• Customizable Sizes - Available in multiple configurations to fit your outdoor space perfectly

⚡ Electric Pergola vs Traditional Fixed Pergola - The Smart Choice

Discover why homeowners are upgrading to electric louvered pergolas:

🔧 Superior Engineering & Construction

Our electric pergola features premium components engineered for reliability and longevity:

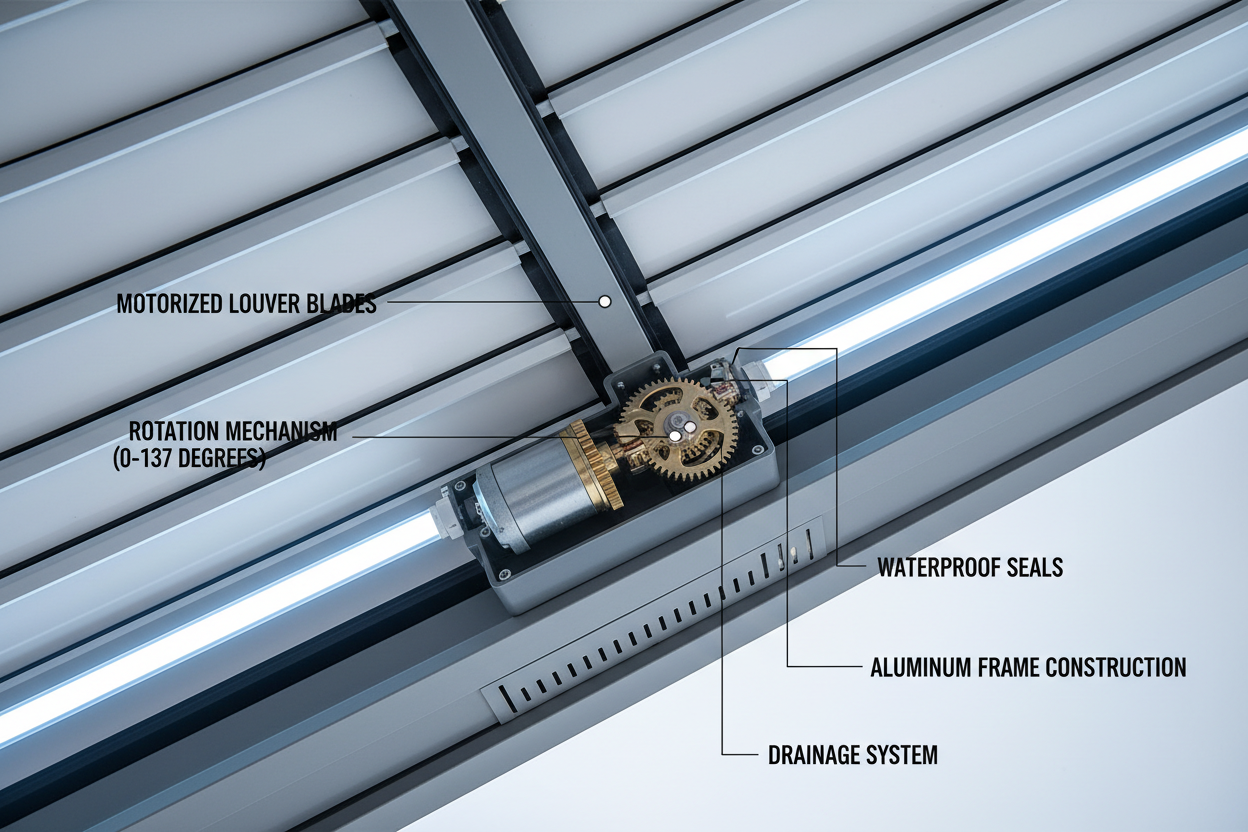

• Motorized Louver System - Precision German motors with 0-135° rotation range and position memory
• Premium Aluminum Frame - Marine-grade 6063-T5 aluminum with powder-coated finish in multiple colors
• Waterproof Sealing - EPDM rubber gaskets create watertight seal when louvers are closed
• Integrated Drainage - Built-in gutter system channels water away efficiently
• Wind-Rated Structure - Engineered to withstand winds up to 120 km/h (Beaufort Scale 10)
• UV-Resistant Coating - Powder coating protects against sun damage and color fading
• Corrosion Protection - Stainless steel hardware and aluminum construction prevent rust
• Emergency Manual Override - Manually operate louvers in case of power outage

☀️ Infinite Shade & Light Control

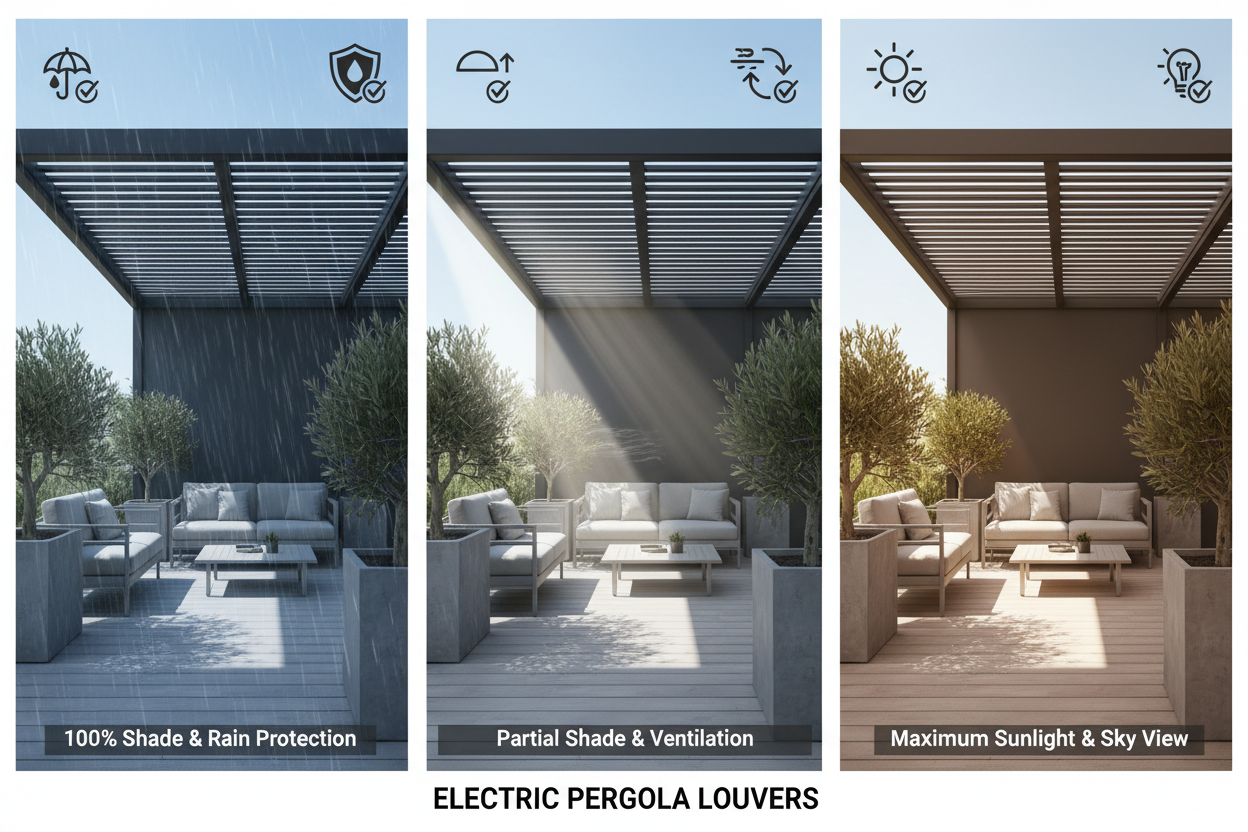

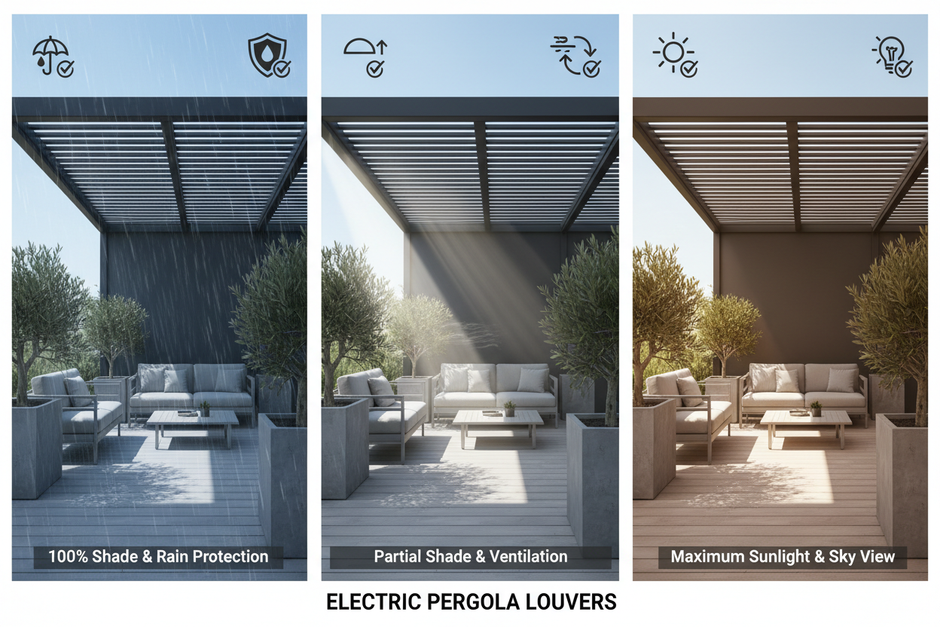

Adjust your outdoor environment to perfection with three main configurations and infinite positions in between:

• Fully Closed (0°) - Complete shade and 100% rain protection, creates enclosed outdoor room
• Partial Open (45-90°) - Balanced shade and ventilation, perfect for comfortable outdoor dining
• Fully Open (135°) - Maximum sunlight and sky views, ideal for stargazing or sunny days
• Custom Angles - Set any angle between 0-135° to match the sun's position throughout the day

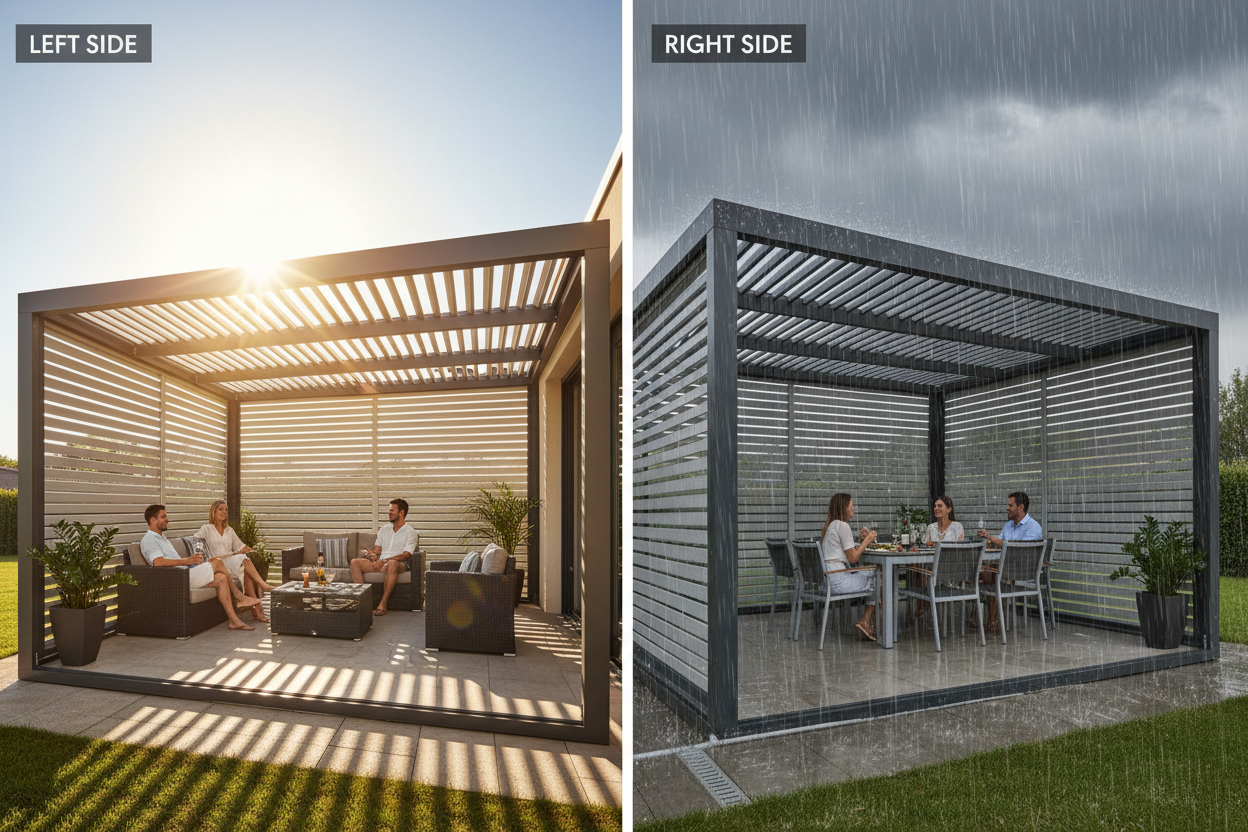

🌦️ All-Weather Performance

Enjoy your outdoor space year-round, regardless of weather conditions:

• Summer Sun Protection - Angle louvers to block harsh sunlight while maintaining airflow, reducing temperature by up to 15°C
• Rain Protection - Fully waterproof when closed with integrated drainage system, stay dry during unexpected showers
• Spring & Fall Comfort - Adjust louvers for perfect balance of sun, shade, and fresh air
• Night Entertainment - Open louvers for stargazing while integrated LED lighting creates perfect ambiance
• Wind Resistance - Automatic wind sensors close louvers in high winds to protect structure
• Snow Load Capacity - Engineered to handle snow loads up to 100 kg/m² when closed

🎮 Smart Control Options

Control your pergola with ease using multiple convenient options:

• Wireless Remote Control - Operate louvers and LED lighting from up to 30 meters away
• Wall-Mounted Control Panel - Convenient indoor/outdoor control station with preset position buttons
• Position Memory - Save up to 4 favorite louver positions for instant recall
• Rain Sensor Auto-Close - Automatically closes louvers when rain is detected
• Wind Sensor Protection - Auto-closes in high winds (>50 km/h) to prevent damage
• LED Lighting Control - Adjust brightness and create perfect outdoor ambiance
• Timer Function - Schedule automatic opening and closing times

📐 Dimensions & Specifications

Available Sizes:

• Standard Configurations: 3m × 3m, 4m × 3m, 4m × 4m, 5m × 4m, 6m × 4m
• Custom Sizes Available: Up to 6m × 6m (contact for quote)
• Post Height: 2.4m, 2.7m, or 3.0m (standard)
• Louver Blade Width: 180mm with 20mm spacing
• Clearance Required: Minimum 2.2m height clearance

Technical Specifications:

• Frame Material: Marine-grade 6063-T5 aluminum alloy
• Post Dimensions: 120mm × 120mm (standard), 150mm × 150mm (large spans)
• Beam Thickness: 3mm wall thickness, reinforced at joints
• Louver Material: Extruded aluminum with internal reinforcement
• Motor: 230V AC, 50Hz, tubular motor with thermal protection
• Power Consumption: 250W (operating), <2W (standby)
• Louver Rotation: 0° to 135° in 60 seconds
• Wind Resistance: Up to 120 km/h (Beaufort Scale 10)
• Snow Load Capacity: 100 kg/m² (when closed)
• Waterproof Rating: IP65 (motors and electrical components)
• Operating Temperature: -30°C to +60°C
• Finish Options: White, Anthracite Grey, Black, Bronze, Custom RAL colors
• LED Lighting: Integrated RGB LED strips, dimmable, 12V DC
• Warranty: 10 years structure, 5 years motor & electronics, 3 years finish

🛠️ Professional Installation Guide

Professional Installation Strongly Recommended

Due to the structural complexity, electrical requirements, and weight of the electric pergola system, we strongly recommend professional installation by certified installers. Installation typically takes 2-3 days depending on site conditions and pergola size.

Installation Overview (8 Steps):

1. Site Preparation - Survey installation area, mark post positions, check for underground utilities, and prepare level surface
2. Foundation Work - Excavate and pour concrete footings (minimum 600mm deep × 400mm diameter per post), allow 48-72 hours curing time
3. Post Installation - Set aluminum posts in footings with post anchors, ensure perfectly level and plumb, secure with concrete
4. Main Beam Assembly - Attach main support beams to posts using heavy-duty brackets, verify structural alignment and levelness
5. Cross Beam Installation - Install cross beams and louver support tracks, ensure parallel alignment for smooth louver operation
6. Louver System Installation - Install motorized louver blades into tracks, connect drive mechanism, and test rotation range
7. Electrical Connection - Run conduit and wiring to motor and LED system, connect to power source following local electrical codes (licensed electrician required)
8. Final Setup & Testing - Install control system, program sensors, test all functions, adjust louver alignment, seal all connections, and apply weatherproofing

Tools & Equipment Required:

• Concrete mixer or ready-mix concrete delivery
• Post hole digger or auger (600mm depth)
• Spirit level (2m length minimum)
• Laser level for beam alignment
• Power drill with masonry and metal bits
• Socket wrench set (metric)
• Scaffolding or work platform (3m height minimum)
• Lifting equipment or 4-person team (posts weigh 40-60kg each)
• Electrical testing equipment (for licensed electrician)
• Torque wrench for structural bolts

Critical Safety Requirements:

• ⚠️ Licensed electrician required for all electrical work - Non-compliance voids warranty
• ⚠️ Building permit required - Check local building codes and obtain necessary permits before installation
• ⚠️ Minimum 3-4 person installation team - Structure components are heavy (total weight 300-800kg depending on size)
• ⚠️ Structural engineer consultation recommended - Especially for rooftop or elevated installations
• ⚠️ Underground utility check mandatory - Contact local utility companies before excavation
• ⚠️ Concrete curing time critical - Do not proceed with installation until footings are fully cured (minimum 48 hours)
• ⚠️ Wind conditions - Do not install during windy conditions (>30 km/h winds)
• ⚠️ Fall protection required - Use appropriate safety harnesses and equipment when working at height
• ⚠️ Load-bearing verification - Ensure mounting surface can support minimum 500kg per post

Professional Installation Service:

We offer certified professional installation services in select areas. Our experienced installation teams ensure proper setup, electrical connection, structural integrity, and full warranty activation. Contact us for installation quotes and availability in your region.

Installation Timeline:

• Day 1: Site preparation and foundation work
• Day 2-3: Concrete curing (no work)
• Day 4: Post and beam installation
• Day 5: Louver system and electrical installation, testing and commissioning

🚢 Shipping Information

Sea Freight Delivery: 14-21 business days

Due to the size and weight of the electric pergola system, all orders are shipped via sea freight in protective crating. Delivery time is approximately 14 to 21 business days from the date of dispatch. You will receive tracking information and delivery scheduling once your order has been shipped.

Shipping Details:

• Ships in multiple crates (typically 3-5 crates depending on size)
• Curbside delivery included (freight carrier delivers to street level)
• White glove delivery and installation available (additional fee)
• Signature required upon delivery
• Inspect all crates for damage before signing delivery receipt

✅ Perfect Applications

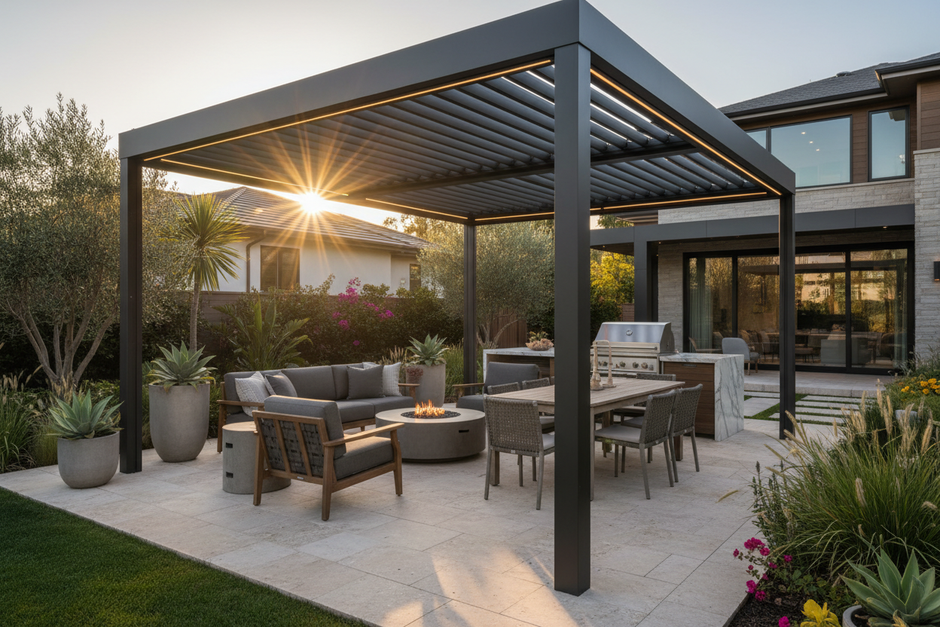

• Residential backyards and patios
• Rooftop terraces and penthouses
• Pool and spa areas
• Outdoor kitchens and dining spaces
• Garden rooms and outdoor living areas

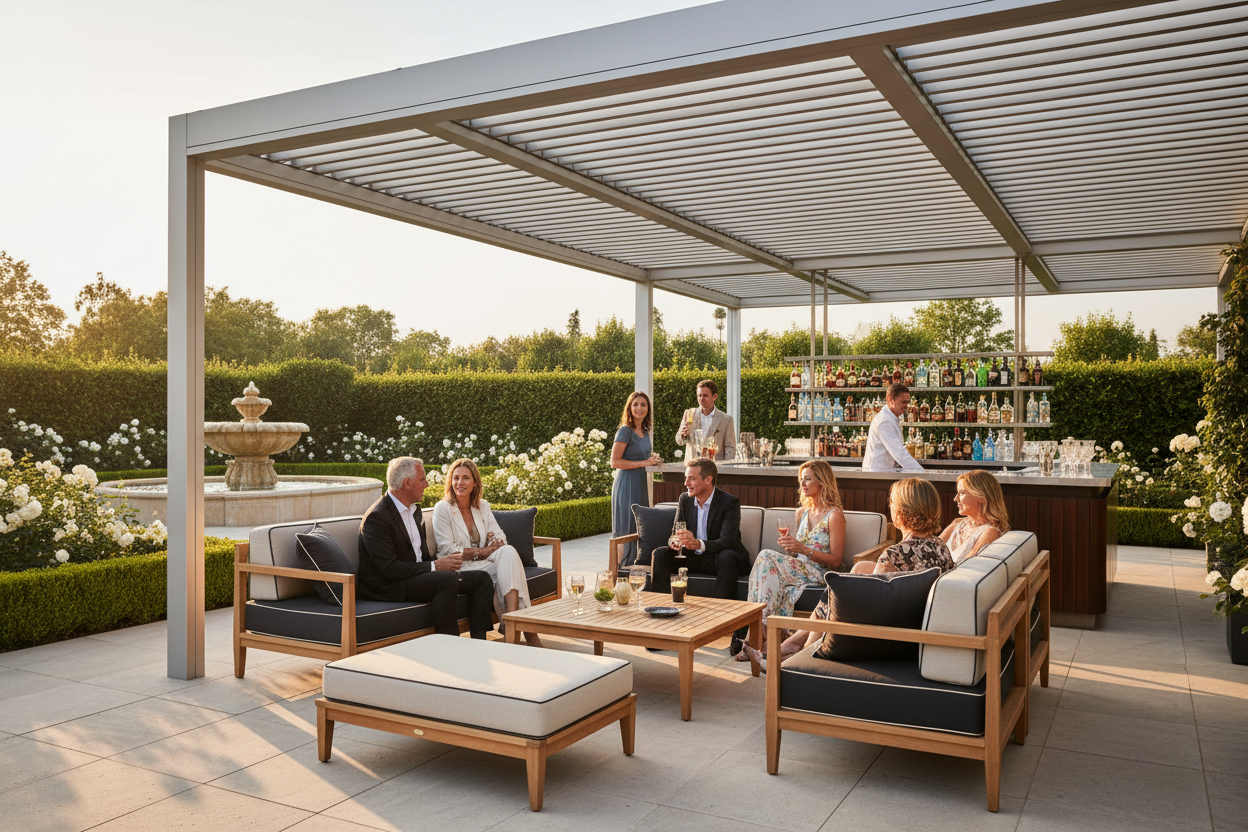

• Commercial restaurants and cafes

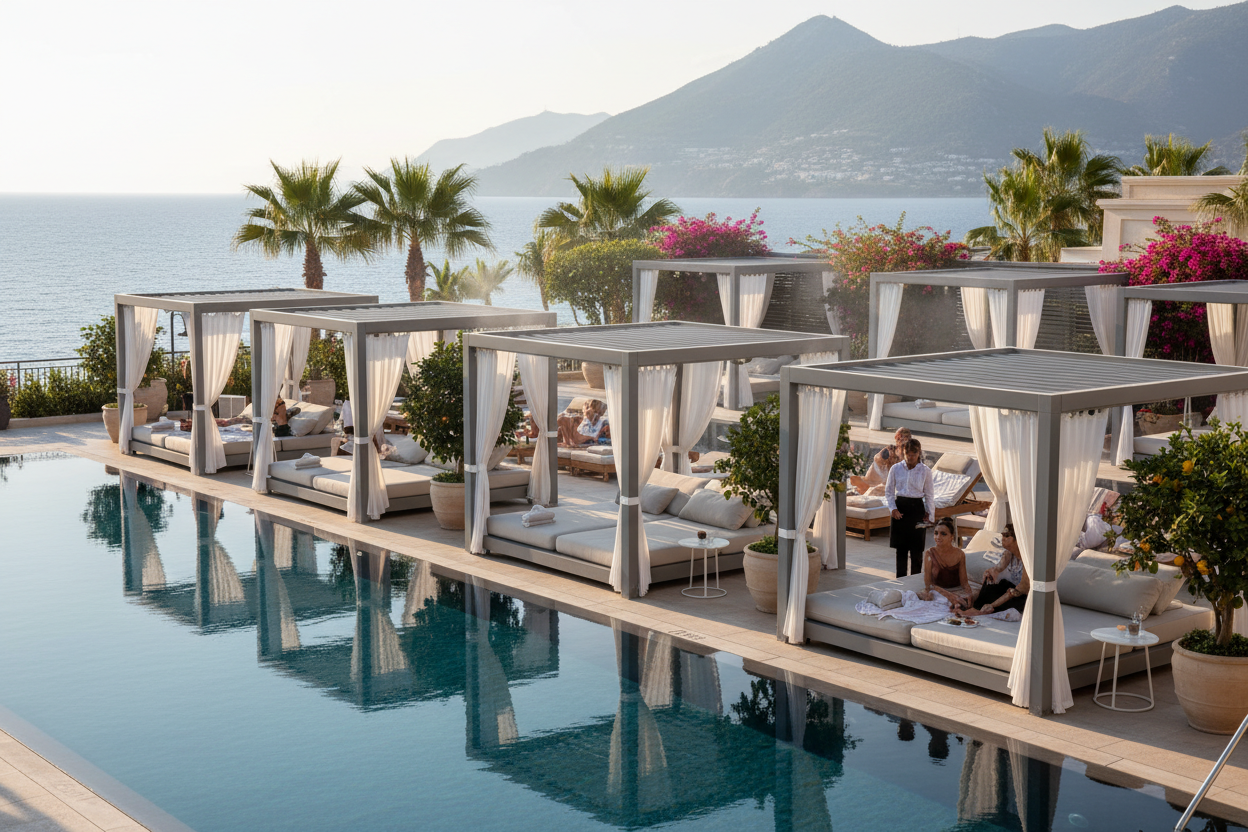

• Hotel and resort outdoor spaces
• Event venues and entertainment areas
• Luxury residential developments

📦 What's Included

• Complete electric louvered pergola structure (posts, beams, louvers)
• Motorized louver drive system with German-engineered motors
• Wireless remote control (batteries included)
• Wall-mounted control panel
• Rain and wind sensors with mounting hardware
• Integrated LED lighting system with controller
• All mounting brackets and structural hardware
• EPDM rubber seals and weatherproofing components
• Drainage system components
• Installation manual and technical drawings
• 10-year manufacturer warranty (structure)
• 5-year warranty (motor and electronics)

🎨 Customization Options

• Frame Colors: White, Anthracite Grey, Matte Black, Bronze, or custom RAL color (+10% cost)
• Size Configurations: Standard or custom dimensions up to 6m × 6m
• Post Height: Choose from 2.4m, 2.7m, or 3.0m standard heights
• Side Panels: Add optional retractable side screens or glass panels for wind protection
• Heating: Integrate infrared heaters for year-round comfort (sold separately)
• Ceiling Fans: Add ceiling fans for enhanced air circulation (sold separately)
• Outdoor Speakers: Integrate Bluetooth speakers into structure (sold separately)

💡 Why Choose Our Electric Louvered Pergola?

• Premium Quality: Marine-grade aluminum and German-engineered motors built to last decades
• Complete Weather Control: Enjoy your outdoor space in any weather condition, year-round
• Smart Automation: Sensors and controls provide worry-free operation and protection
• Energy Efficiency: Reduce indoor cooling costs by up to 30% by shading adjacent windows and doors
• Increase Property Value: Premium outdoor living spaces can increase home value by 15-20%
• Architectural Beauty: Sleek modern design complements any architectural style
• Versatile Functionality: Transforms from open-air pavilion to enclosed outdoor room instantly
• Low Maintenance: Aluminum construction requires minimal upkeep, no painting or staining
• Industry-Leading Warranty: 10-year structural warranty provides long-term peace of mind
• Proven Durability: Engineered and tested to withstand extreme weather conditions

🏆 Certifications & Standards

• CE Certified for European safety standards
• IP65 waterproof rating for electrical components
• Wind load tested to 120 km/h (Beaufort Scale 10)
• Snow load capacity 100 kg/m²
• Complies with international building codes
• RoHS compliant (environmentally friendly materials)

Create the ultimate outdoor living experience with our Electric Louvered Pergola. Transform your backyard into a luxurious year-round retreat where you control the sun, shade, and weather. Order today and elevate your outdoor lifestyle!
